Steel Wire Rope verostar 8
Product information

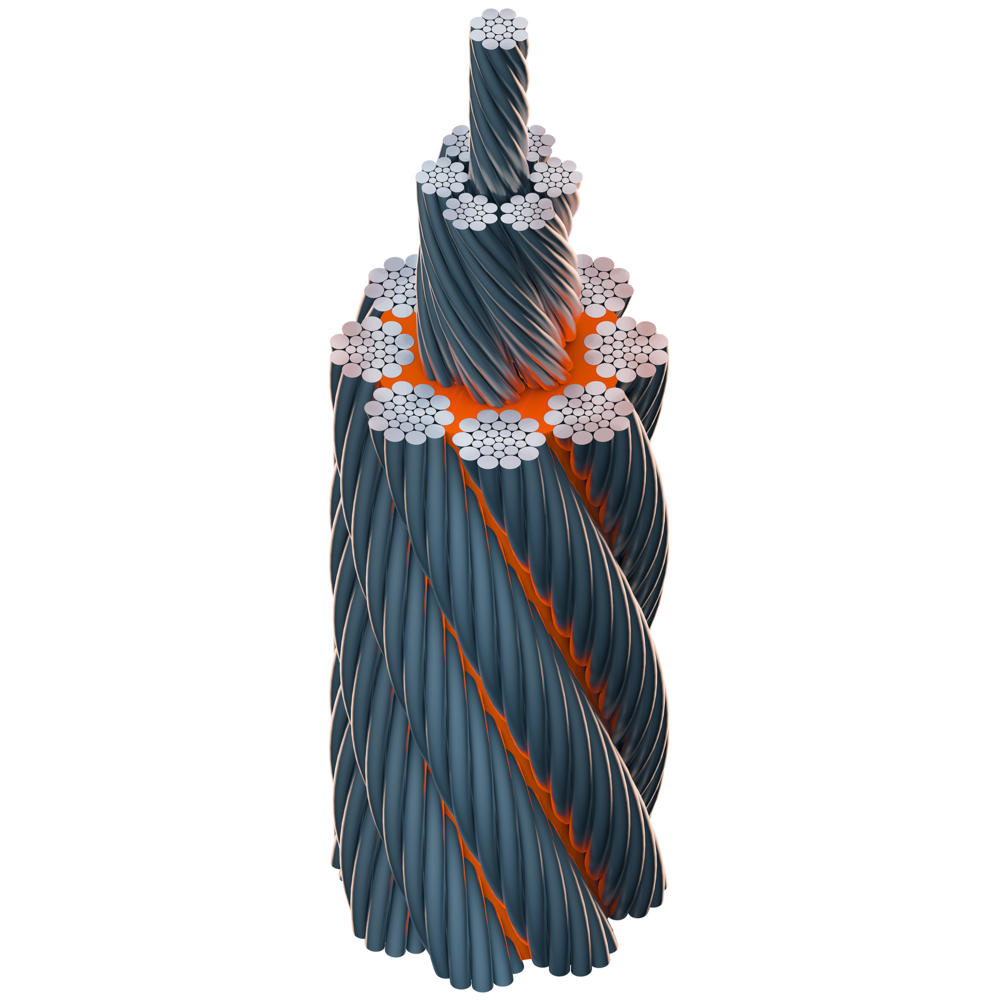

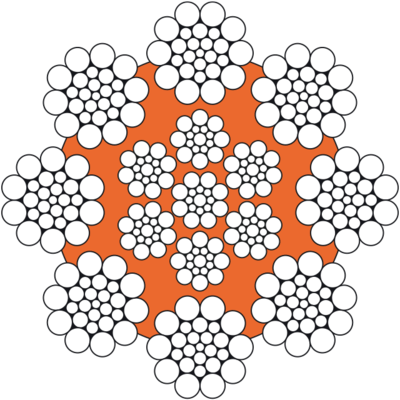

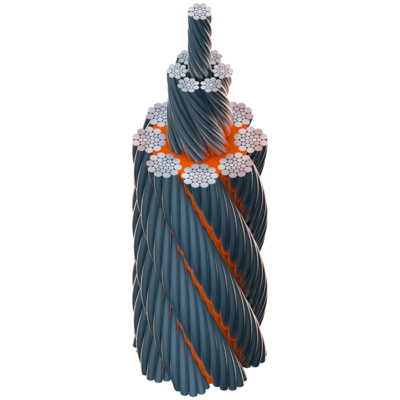

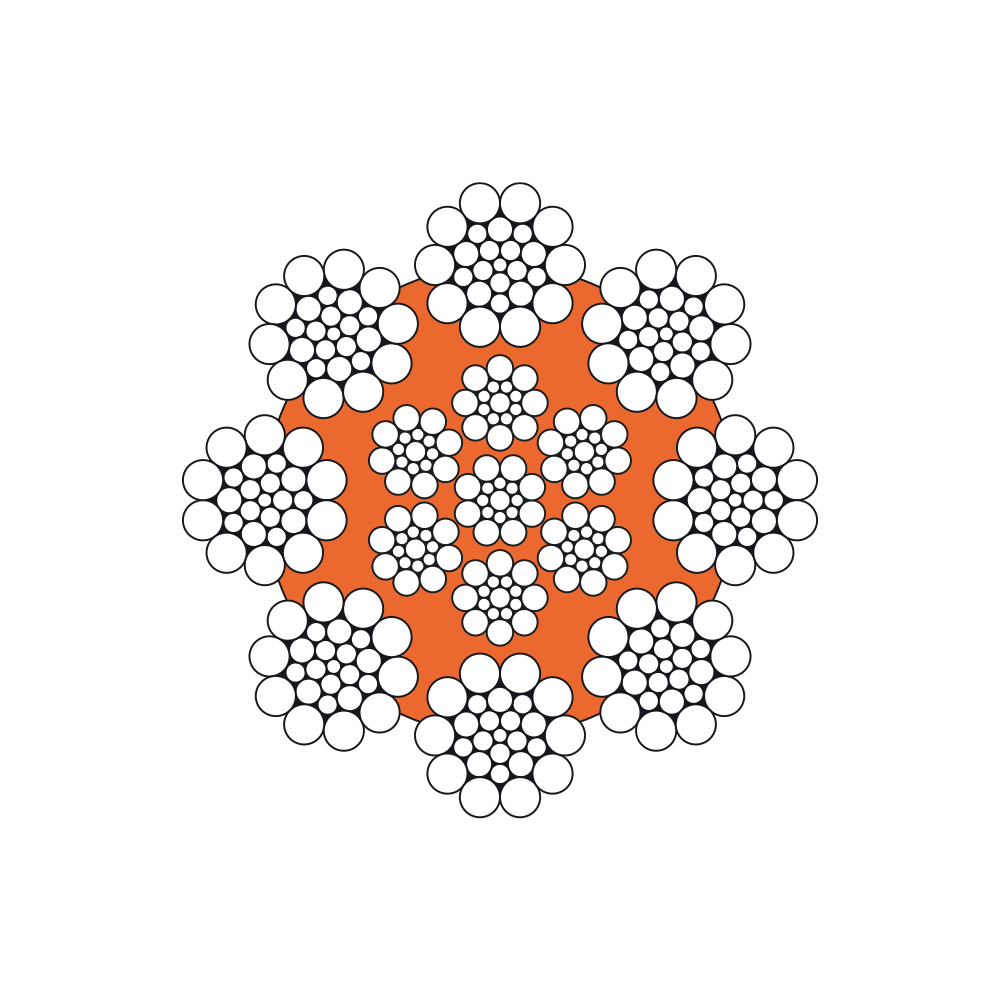

Wire rope construction: Verostar 8 is a 8 strand non-rotation-resistant rope made out of conventional strands, plastic layer between the inner and outer strands.
Features:
- High breaking strength
- Very stable rope structure and achieves good bending fatigue results
- Achieves best service life in reeving systems with single layer drums
ISO 4309
Rope Category No: Up to 42mm RCN.09, 43-48mm RCN.11, > 48mm RCN.13
- Marking: According to standard
- Standard: EN 12385-4
- Warning: verostar 8 may not be used with a swivel.
- Fill factor: 0.61
- RCN: 09
- Tolerance Ø: +2% to +4%
8▾
- Select property
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 38
- 40
- 42
- 44
- 45
- 46
- 48
- 50
- 52
- 54
- 56
- 58
1,770▾
- Select property
- 1,770
- 1,960
Bright▾
- Select property
- Bright
- Galvanized
sS▾
- Select property
- sS
- sZ
- zS
- zZ
On request
Product number: 103100805050469
-
Overhead cranes
-
Tower crane
-
Container crane
-
Mobile port crane
-
Loading crane
-
Piling crane
-
Ladle crane
-
STS crane
-
Straddle carrier
-
RTG
