The Powertex LP580 eye bolt is the the most simple and essential product in our range of lifting points. It is designed for permanent attachment to equipment such as motors, control cabinets, and gearboxes. This lifting point ensures reliable performance and safety in your operations but has some limitations as well. As it is a fixed lifting eye we recommend it primarily for straight single point lift. The lifting point shall be screwed tightly to the structure or load. For more advanced and versatile lifting points, please check other products in our range.
Allowed Loading Directions:
- Straight (max WLL)
- Sideways (not perpendicular to the eye)
- 180 degrees in the plane of the eye (+/- 90 degrees from centre line)

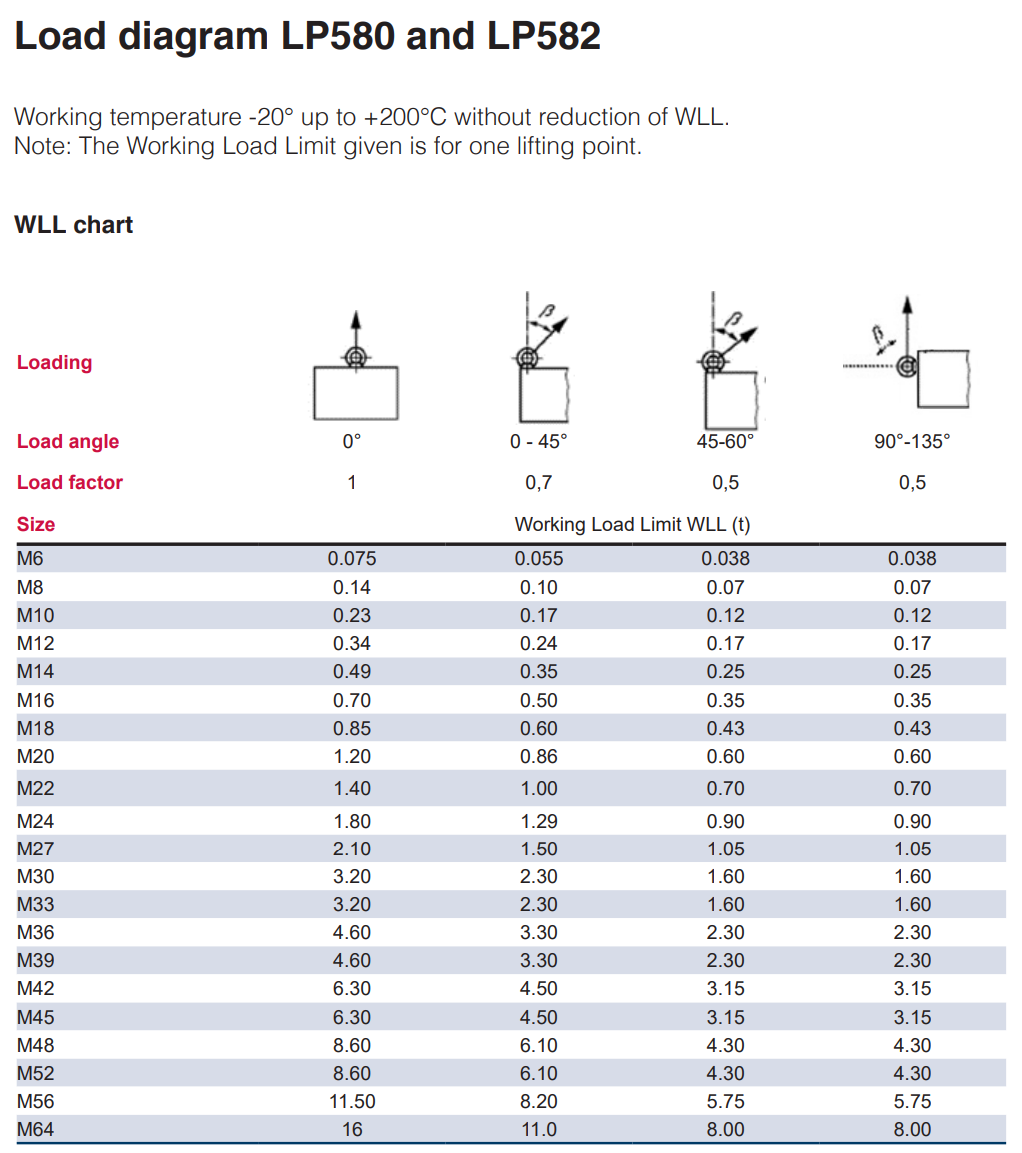

- Check the WLL Table for proper WLL reductions when loading sideways
Product Features:
- Durable Finish: Electro Galvanized (Chrome 6 Free)
- Compliance to standard: Manufactured to meet the testing requirements specified by DIN580, ensuring high safety and quality standards.
- Reliable: Designed with a safety factor 6:1 in the intended load directions, offering a secure lifting experience.
- Quality assurance: Samples are load tested in the factory to ensure high reliability.
- Full Traceability: Every component is marked with PX branding, WLL, CE-mark, Size, Matertail (C15E) and a traceability code, ensuring traceability to the production lot and raw materials.
- WLL Indication: The LP580 is marked with the WLL (straight loading 0°) and an arrow that shows the corresponding load direction. The WLL chart provides a applicable WLL for other loading directions.
- Harmless: Chromium 6 free, aligning with environmental safety standards.
- Certificates Included: Comes with a POWERTEX 2.2 certificate & Declaration of Conformity with each box, confirming compliance with EC and UK regulations.
- Wide Temperature Range: Allowed for use between -20°C to +200°C without WLL reduction.
- Material: Carbon Steel C15E
- Marking: According to standard, CE-marked, UKCA-marked, PX, Material, CE-Mark, WLL, Nominal size, Batch number, Arrow indicating the axial direction
- Temperature range: -20°C up to +200°C
- Finish: Electro Galvanized
- Standard: DIN 582
- Note: The lifting eyes shall be screwed tight against the surface. Reduce WLL when not loading straight (see table).
- Safety factor: 6:1
