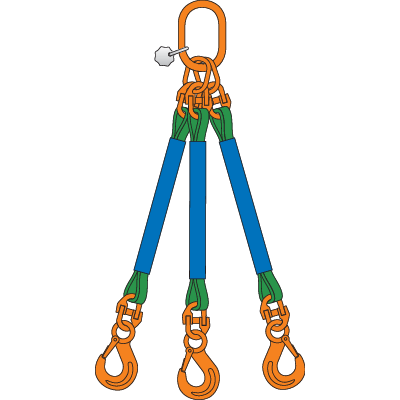

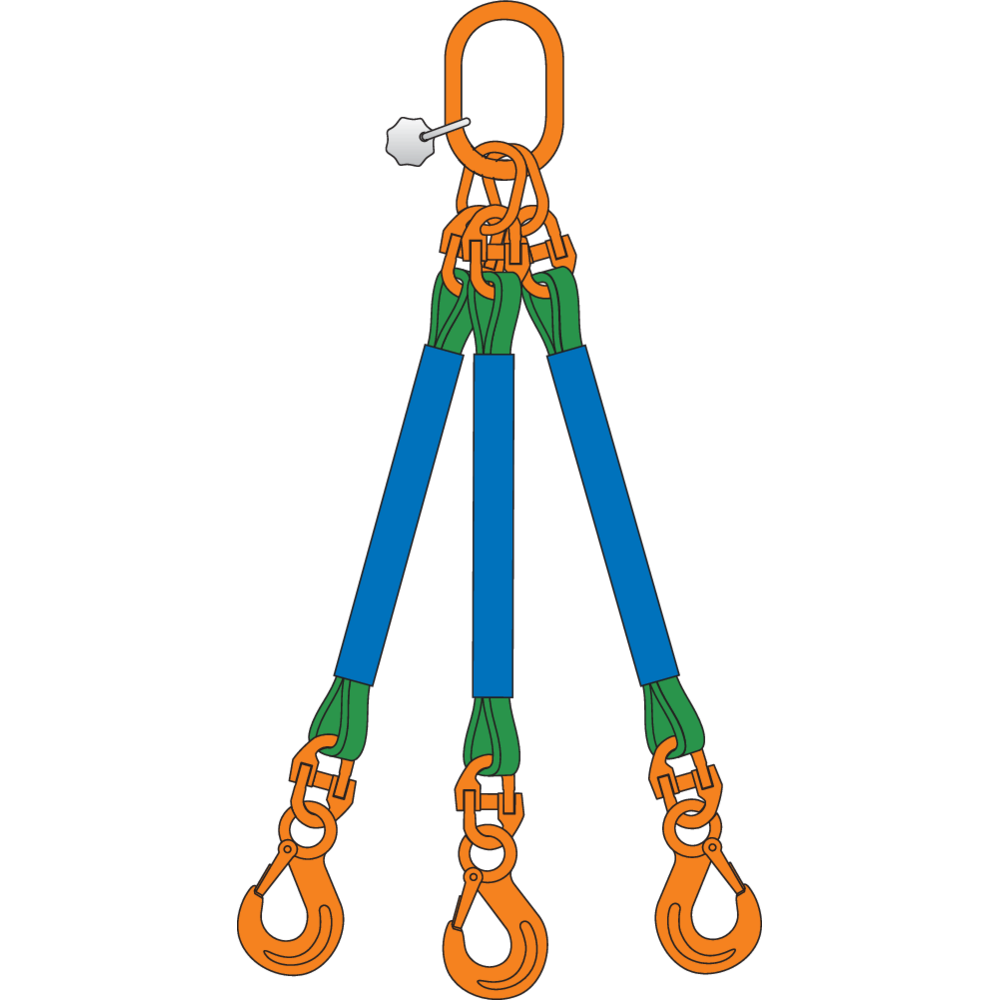

3-leg round sling assy with chain components (G10)

Properties

  • End fittings Grade 10.
  • Round sling coupling (WCL) for the safe and smooth connection of round slings with end fittings.
  • Indentification label.
  • Length round sling is 1 meter

Show more

Show table
Product number:
REMA

Properties

  • End fittings Grade 10.
  • Round sling coupling (WCL) for the safe and smooth connection of round slings with end fittings.
  • Indentification label.
  • Length round sling is 1 meter
  • Marking: According to standard, CE-marked
  • Standard: EN 1492-2, EN 1677-1
  • Note: Option: Extra length round sling and protective cover on request.

Roundsling polyester

EN 1492-1

Safety Factor 7:1

Straight pull Basket hitch Choke hitch Basket hitch
andlos-rakt andlos-uform andlos-snarat vinkel
0°−45° 45°−60°
Color Working load limit (WLL) in tons
Purple 1,0 2,0 0,8 1,4 1,0
Green 2,0 4,0 1,6 2,8 2,0
Yellow 3,0 6,0 2,4 4,2 3,0
Grey 4,0 8,0 3,2 5,6 4,0
Red 5,0 10,0 4,0 7,0 5,0
Brown 6,0 12,0 4,8 8,4 6,0
Blue 8,0 16,0 6,4 11,2 8,0
Orange 10,0 20,0 8,0 14,0 10,0
Orange 12,0 24,0 9,6 16,8 12,00
Orange 15,0 30,0 12,0 21,0 15,0
Orange 20,0 40,0 16,0 28,0 20,0
Orange 25,0 50,0 20,0 35,0 25,0
Orange 30,0 60,0 24,0 42,0 30,0
Orange 35,0 70,0 28,0 49,0 35,0
Orange 40,0 80,0 32,0 56,0 40,0
Orange 50,0 100,0 40,0 70,0 50,0
Orange 60,0 120,0 48,0 84,0 60,0
Orange 70,0 140,0 56,0 98,0 70,0
Orange 80,0 160,0 64,0 112,0 80,0
Orange 85,0 170,0 68,0 119,0 85,0
Orange 90,0 180,0 72,0 126,0 90,0
Orange 100,0 200,0 80,0 140,0 100,0
Orange 125,0 250,0 100,0 175,0 125,0
Orange 150,0 300,0 120,0 210,0 150,0
Orange 175,0 350,0 140,0 245,0 175,0
Orange 180,0 360,0 144,0 252,0 180,0
Orange 200,0 400,0 160,0 280,0 200,0
Factor (KL) 1 2 0,8 1,4 1
