EN 1492-1

	Straight pull	Basket hitch	Choke hitch	Basket hitch

				0°−45°	45°−60°
Width	Working load limit (WLL) in tons
50 mm	1,0	2,0	0,8	1,4	1,0
60 mm	2,0	4,0	1,6	2,8	2,0
90 mm	3,0	6,0	2,4	4,2	3,0
120 mm	4,0	8,0	3,2	5,6	4,0
150 mm	5,0	10,0	4,0	7,0	5,0
180 mm	6,0	12,0	4,8	8,4	6,0
240 mm	8,0	16,0	6,4	11,2	8,0
300 mm	10,0	20,0	8,0	14,0	10,0
Factor (K_L)	1	2	0,8	1,4	1

Warehouse	Availability

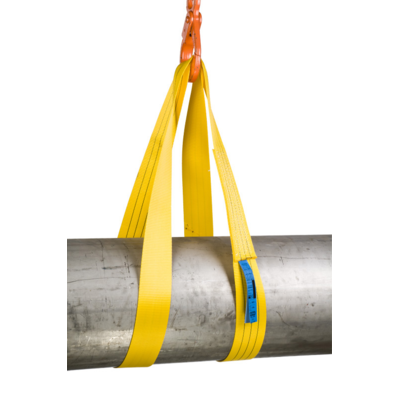

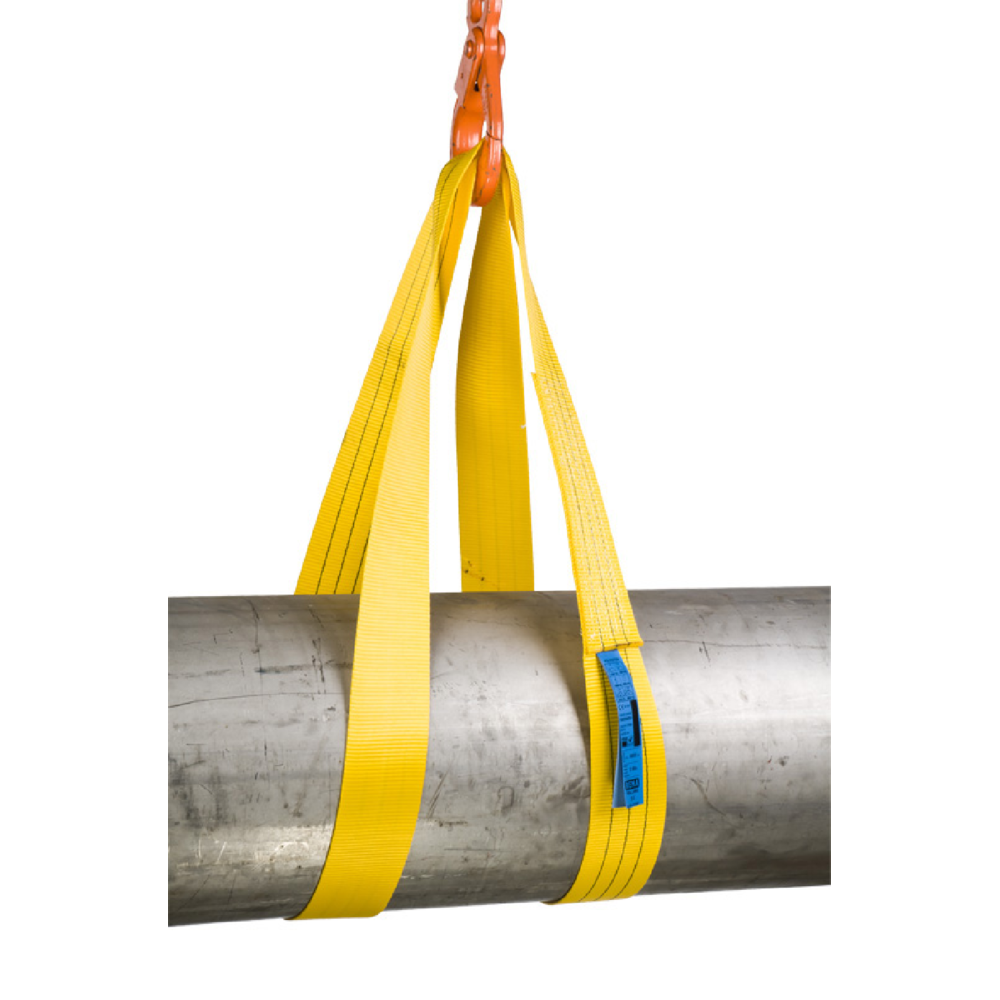

S2 endless polyester flat slings

E-mail Get PDF

This professional webbing sling is extremely suitable for intensive industrial use.

Properties

Show table

WLL:

EWL:

Quantity:

Product number:

This professional webbing sling is extremely suitable for intensive industrial use.

Properties

Filters & subcategories

Show results

EN 1492-1

	Straight pull	Basket hitch	Choke hitch	Basket hitch

				0°−45°	45°−60°
Width	Working load limit (WLL) in tons
50 mm	1,0	2,0	0,8	1,4	1,0
60 mm	2,0	4,0	1,6	2,8	2,0
90 mm	3,0	6,0	2,4	4,2	3,0
120 mm	4,0	8,0	3,2	5,6	4,0
150 mm	5,0	10,0	4,0	7,0	5,0
180 mm	6,0	12,0	4,8	8,4	6,0
240 mm	8,0	16,0	6,4	11,2	8,0
300 mm	10,0	20,0	8,0	14,0	10,0
Factor (K_L)	1	2	0,8	1,4	1
