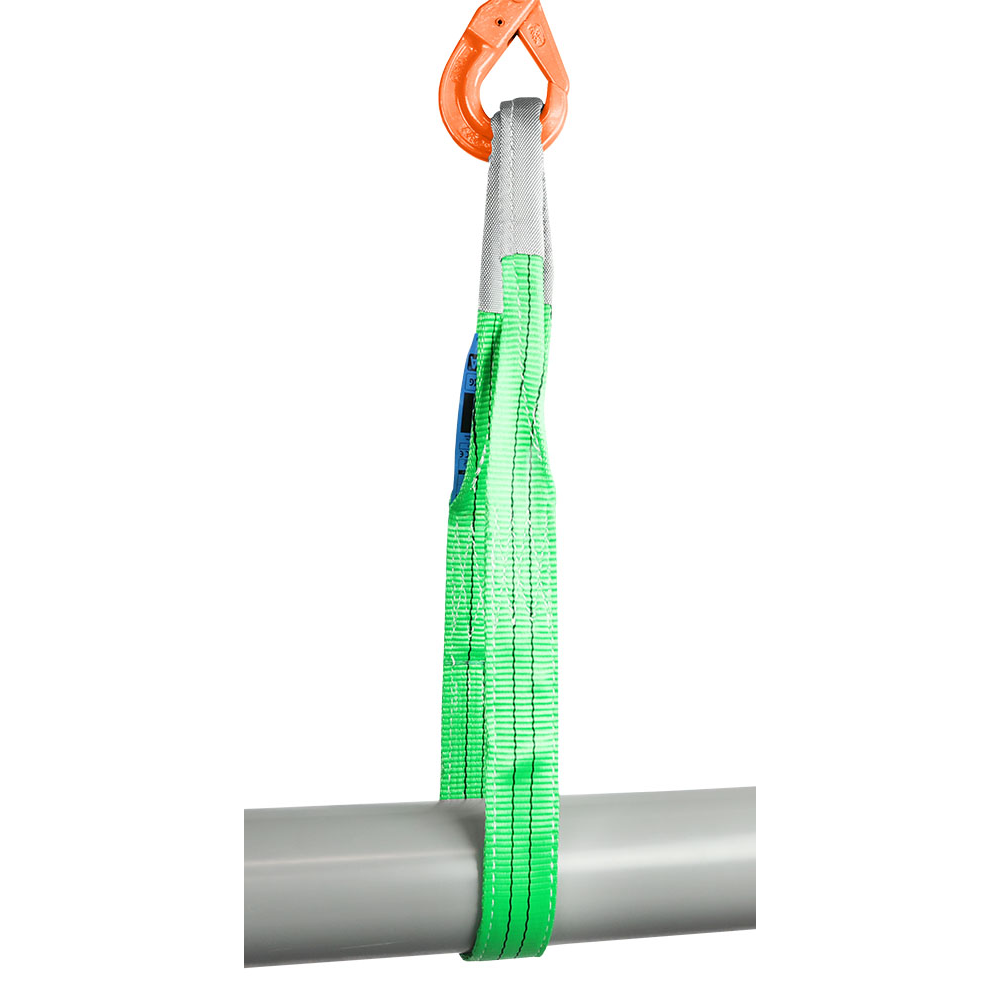

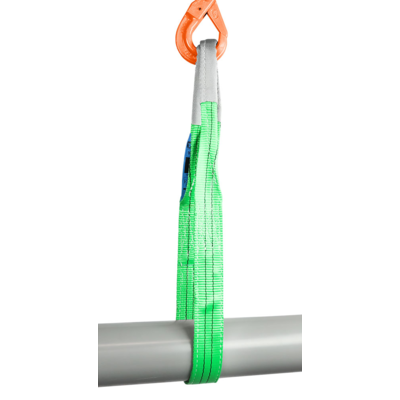

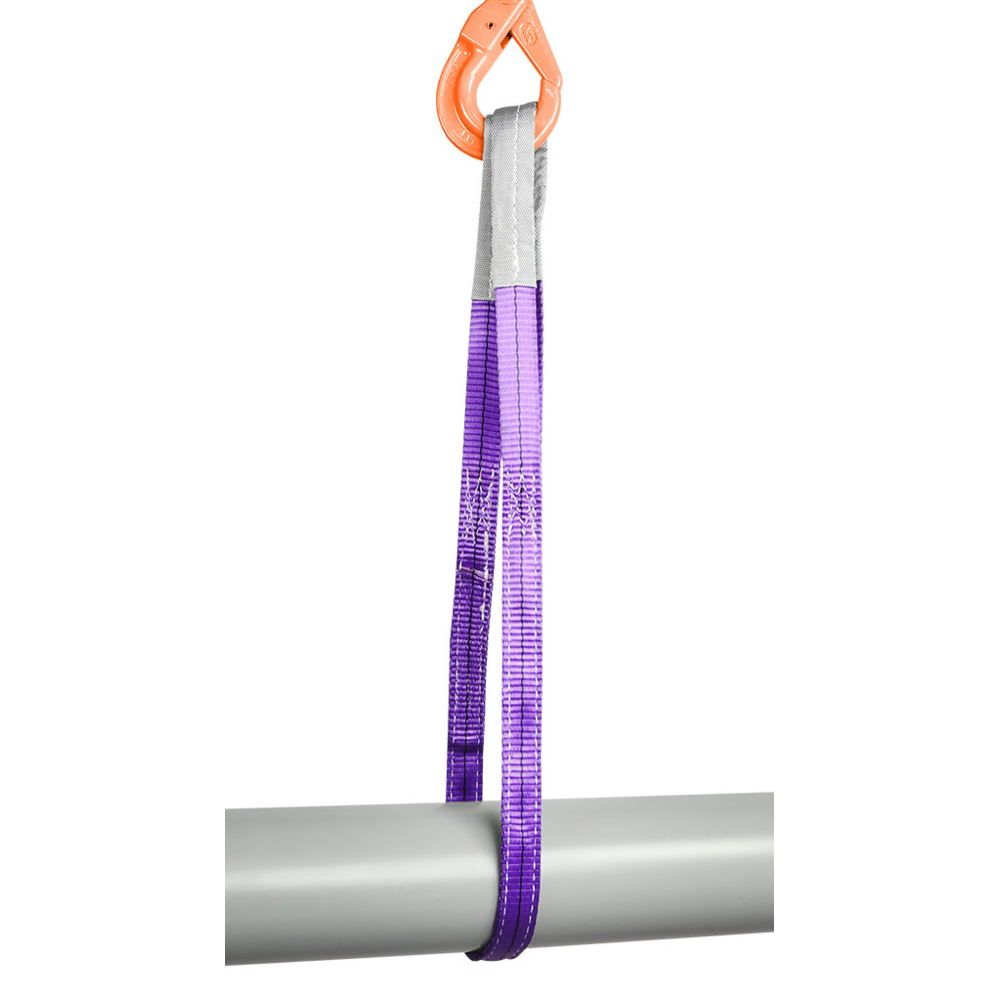

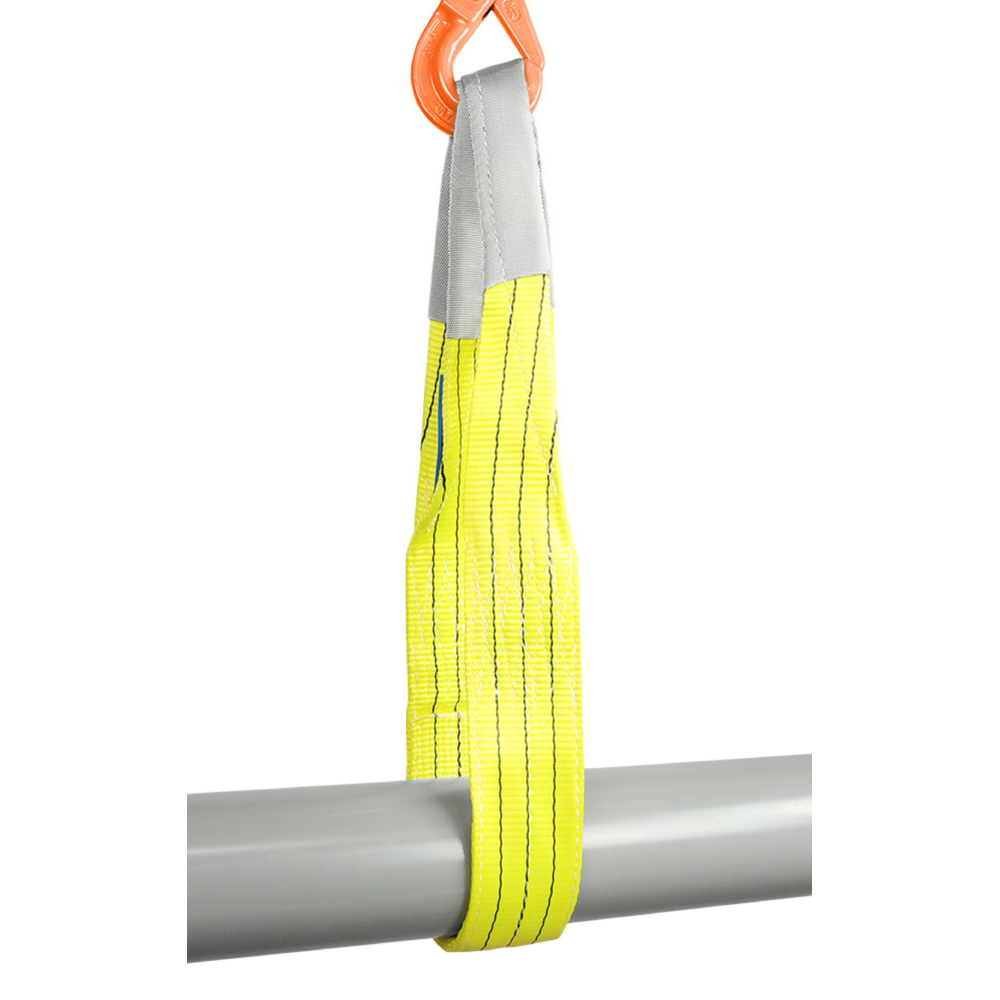

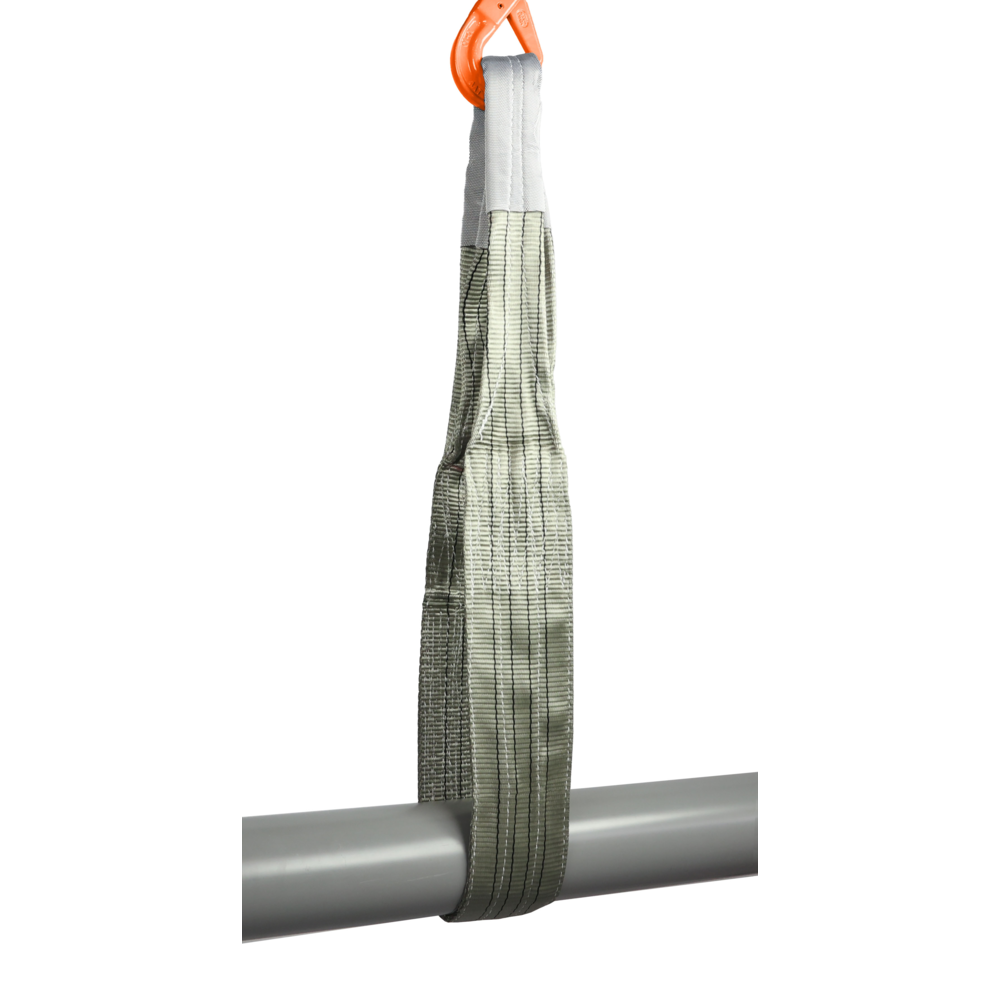

S1 polyester flat webbing slings with reinforced eyes



This professional webbing sling is extremely suitable for intensive industrial use.



Packaging


Packaged in semi-biodegradable plastic.



Properties


  • Duplex hoisting belt; double strap layers.
  • Extra strong, water- and dirt-repellent, impregnated fabric guarantees a

Show more

Show table
Product number:
REMA



This professional webbing sling is extremely suitable for intensive industrial use.



Packaging


Packaged in semi-biodegradable plastic.



Properties


  • Duplex hoisting belt; double strap layers.
  • Extra strong, water- and dirt-repellent, impregnated fabric guarantees a longer life.
  • WLL stripes, each stripe is 1 ton (up to 10 tons).
  • Every 30 mm band width is 1 ton load capacity.
  • Material: polyester
  • Marking: According to standard, CE-marked
  • Standard: EN 1492-1
  • Note: Packed in plastic including REMA manual.

Webbing sling polyester

EN 1492-1

Safety Factor 7:1

Straight pull Basket hitch Choke hitch Basket hitch
1-part-double u-lyft-double snarat-double vinkel-double
0°−45° 45°−60°
Width Working load limit (WLL) in tons
50 mm 1,0 2,0 0,8 1,4 1,0
60 mm 2,0 4,0 1,6 2,8 2,0
90 mm 3,0 6,0 2,4 4,2 3,0
120 mm 4,0 8,0 3,2 5,6 4,0
150 mm 5,0 10,0 4,0 7,0 5,0
180 mm 6,0 12,0 4,8 8,4 6,0
240 mm 8,0 16,0 6,4 11,2 8,0
300 mm 10,0 20,0 8,0 14,0 10,0
Factor (KL) 1 2 0,8 1,4 1
